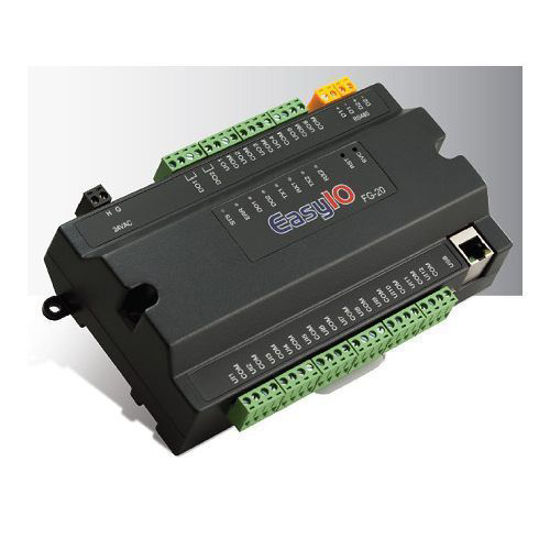

EasyIO FG-20 Controller

EasyIO FG-20 Controller
Call for pricing
20 Point Sedona Controller, 12x UI, 6 x UO (200mA sink) and 2 x DO, with built in HTML 5 Graphics Server. SD Card Memory expansion, 2 RS 485 ports and full EasyIO Sedona Library for Logging, Control, Scheduling and remote management

The EasyIO-FG-20 is a Twisted Pair Control. The same controller can be BACnet-MSTP or Modbus-RTU via a dip switch.

Device Specifications

Mechanical
  • Dimensions 9.2 in x 4.9 in x 1.7 in (233 mm x 124 mm x 44 mm)
  • Material: UL Approved Plastic
Electrical
  • Power Supply: 24V AC +/- 5% or 24V DC +20%/-15%
  • Consumption: TBC
  • Current Rating: 1A at 24VAC/VDC
  • Operating Temp: 32 to 150 Deg-F (0 to 65 Deg-C)
  • Storage Temp: -4 to 150 Deg-F (-20 to 65 Deg-C)
  • Operating Humidity: 10% to 95% relative humidity non-condensing

Inputs & Outputs

  • UO: 3 modes. Voltage mode, output range: 0-10V; Current mode, output range: 0-20mA; Digital mode, maximum sinking current: 200mA
  • UI: 5 modes: Digital mode, voltage free contact input, Resistance mode, input range: 500-500Kohm; Voltage mode, input range: 0-10V; Current mode, input range: 0-20mA; Pulse count mode, maximum pulse frequency: 20Hz
  • DO: Relay output with contact rating 1A 30VDC
Communication
  • Physical Interface 1 & 2 (Port 1 & 2): EIA-485 (BUS A, B) Two-wire, Half Duplex
  • Modbus Baud Rate Speed: (9.6K, 19.2k, 38.4K, 57.6K, 115.2K bit/s), Data Bit: (8 bits), Parity: (None, Even, Odd)
  • Bacnet Baud Rate Speed: (9.6K, 19.2k, 38.4K, 76.8K), Data Bit: (8 bits), Parity: (None)
  • Ethernet Support: IP, TCP, UDP, ICMP, HTTP, FTP
  • Application Support: Sox and TCOM driver

This product has now been superseded by the EasyIO FG-20+
